Zone Panels

A zoning panel is an auxiliary part that improves the efficiency of HVAC systems. For enhanced performance, the home is divided into customized temperature zones whose heating and cooling conditions are controlled independently ensuring comfort as well as cutting down on energy consumption costs.

In most homes, a single thermostat is used to control the entire heating and cooling system in the home. All adjustments to the air conditioner impact the temperature conditions in the whole home.

Practically, the thermostat settings are adjusted to ensure the comfort of occupancy in a specific area and not the entire home. With one system in control, energy will also be dissipated to the other regions of the home where this change is not needed.

Zoning systems deploy dampers and zoning panels within the ducts to adjust and redirect air to the zones where heating or cooling is needed without affecting the rest of the home. Each zone has a thermostat that communicates with the zoning system.

Zoning System Setup

Relay Panel

A relay panel is a low-voltage panel that enables the thermostats to operate with 12/24 VAC HVAC equipment. It controls the operation of heating, cooling, heat pump, dual fuel systems, and other auxiliary systems.

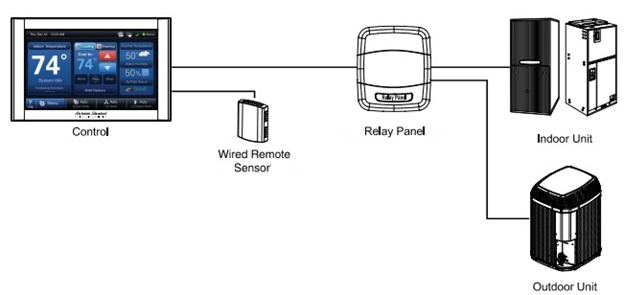

Relay panel component overview

Contact our HVAC specialists for help in the selection of Relay and Zone Panels ideal for your existing heating and cooling systems.

 See the below table for some of the HVAC Relay and Zone Panels:
